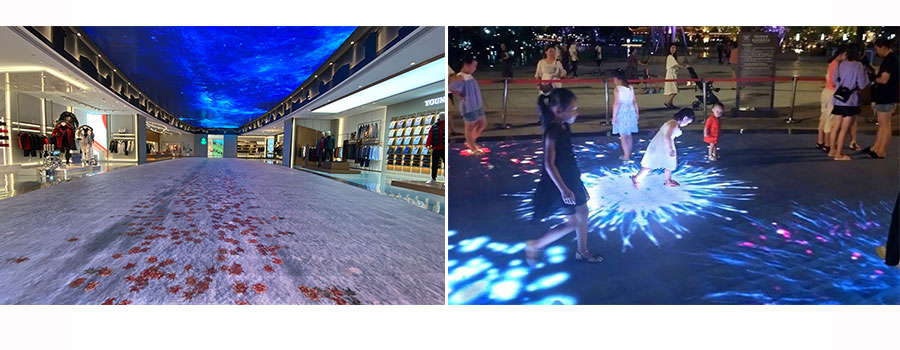

Apply to stage, concert, performance, bar, disco, shopping mall...
Using HD GOB mask, combined with our superior R & D technology and production process, so that the display effect is better, more stable performance.
The use of 500*500mm aluminum box, reduce the whole screen assembly gap, improve the flatness of products.
All aluminum box body forming, fast heat dissipation, per square meter bearing more than 2T
Add high strength protective glue to prevent moisture and dust, and extend the service life of the product.
The built-in IC sensor can interact when someone touches it,
500*500 aluminum box, waterproof and moisture-proof, bearing capacity, with stronger heat dissipation ability
| Model /Ltem | Indoor P2.6 | Indoor P2.97 | Indoor P3.91 | Indoor P4.81 |
|---|---|---|---|---|
| Pixel Pitch | 2.6mm | 2.97mm | 3.91mm | 4.81mm |
| Module resolution | 96×96dost | 84×84dost | 64×64dost | 52×52dost |
| Module size | 250×250mm | |||
| Module weight | 0.35KG | |||
| Mumber of modules | 4pcs | |||
| Cabinet tesolution | 192×192dost | 168×168dost | 128×128dost | 104×104dost |
| Cabinet size | 500×500mm | |||
| Box weight | 8cm | |||
| Box weight | 10KG | |||
| Pixel density | 147456 dots/sqm | 112896 dots/sqm | 65536 dots/sqm | 43265 dots/sqm |
| Interative way | 外置雷达互动(External radar interaction) 内置感应互动(Built-in sensor interaction) | |||
| Refresh rate | ≥OR 3840HZ | |||
| Input voltage | AC220V/50HZ OR AC110V/60HZ | |||
| Electricity consumption | 660/220 W/m2 | |||
| Protection level | IP35 | |||
| Perspective | 水平140°垂直140°（Horizontal 140°Vertical 140° | |||
| Carrying capacity | 2T | |||
| Brightness | ≥1000cd/㎡ | ≥2000cd/㎡ | ||
| Warranty | 3years | |||
