It is used in stage rental, song and dance party, all kinds of conferences, exhibitions, stadiums, theaters, auditory-halls, lecture halls, multi-functional halls, conference rooms, performance halls, disco bars, nightclubs, TV stations...
The use of high quality raw materials, combined with our superior R & D technology and production process, so that the display effect is better, more stable performance.
The power box supports dual card and dual independent input and output. When one circuit fails, it will automatically switch to the other receiver card.
Using equal-current power supply, in case of emergency (power supply burned off), can play the performance normally.
Two signal interfaces, one damaged, can be replaced at any time to ensure the normal operation of the display screen.
Unified power supply, easy to upgrade, support P3.91-P1.95 module replacement, upgrade

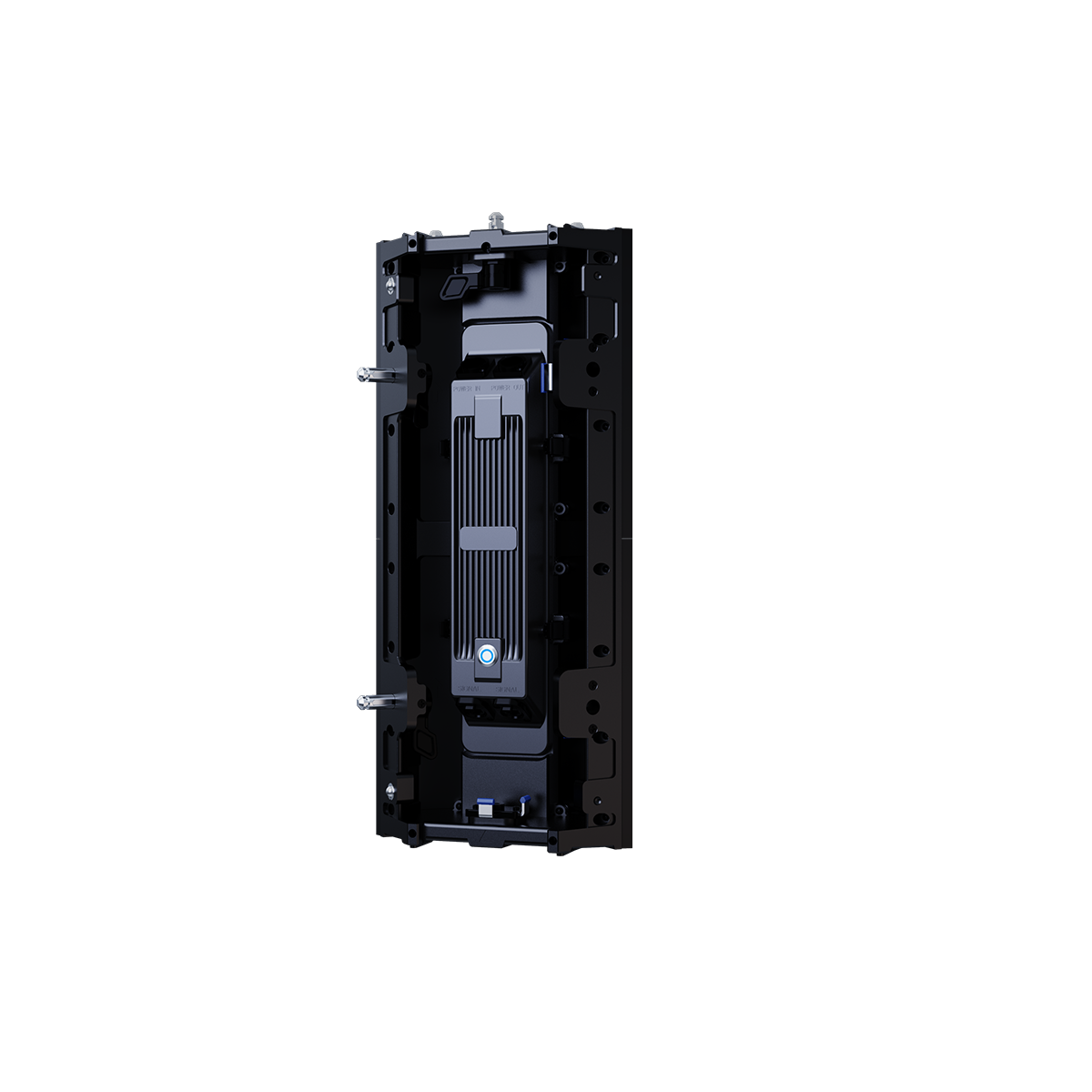

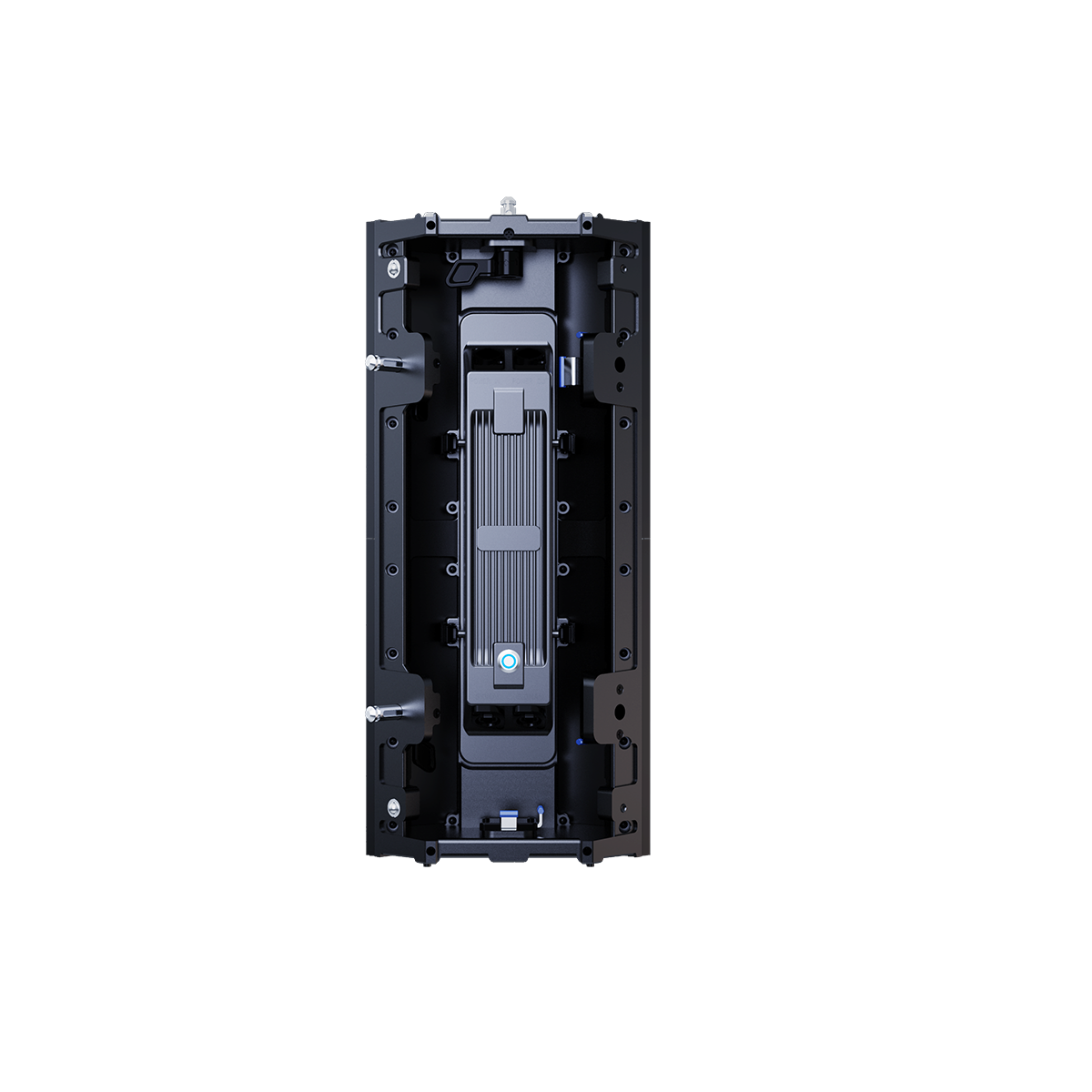

Without opening the box, the display module and power box can be directly disassembled from the front for maintenance and replacement.
Add high strength protective glue to prevent moisture and dust, and extend the service life of the product. It can be used on rainy and cloudy days as well as dry and dusty days.
Adopt two interface, different position exchange, maintenance more portable.
All aluminum box die-casting molding, each box weight is only 7.5kg, thickness is only 80mm; Let the display installation, disassembly and handling more convenient, fast.

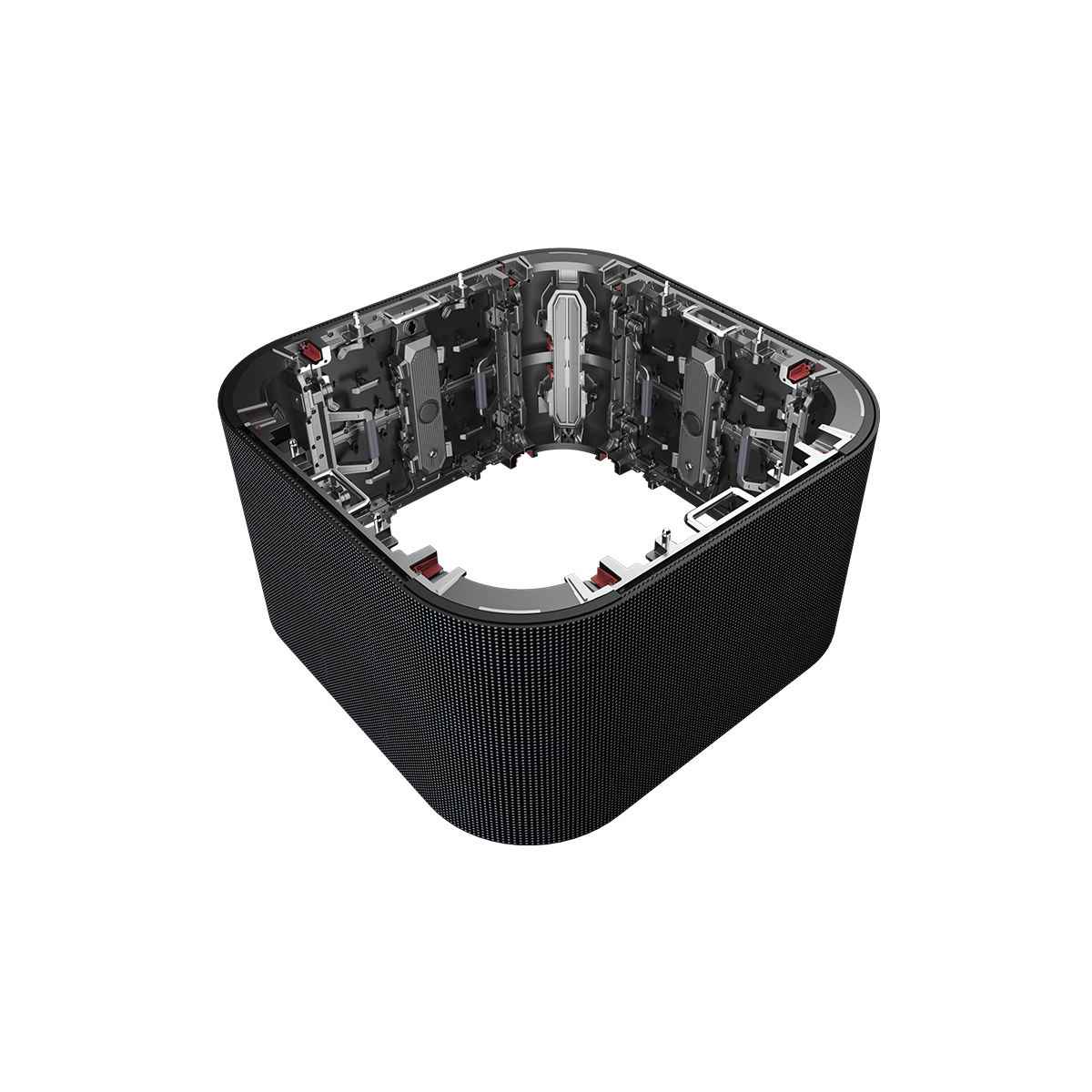

Using 500*500mm die-cast aluminum box, reduce the whole screen assembly gap, improve the flatness of products.
Add high-strength protective glue to prevent moisture and dust, and increase the service life of the product. It can be used in rainy and cloudy days and dry and dusty days.
| Model /Item | Indoor p1.95 | indoor P2.604 | Indoor p2.97 | 0utdoor P2.97 | 0utdoor P3.91 |
|---|---|---|---|---|---|
| Pixel Pitch | 1.95mm | 2.604mm | 2.97mm | 2.97mm | 3.91mm |
| Lamp size | SMD1212 | SMD1415 | SMD1415 | SMD1515 | SMD1820 |
| Pixel density | 262144dots/sqm | 147456dots/sqm | 112896dots/sqm | 112896dots/sqm | 65536dots/sqm |
| Module size | W250mmxH250mm | ||||
| Module resolution | 128*128dots | 96*96dots | 84*84dots | 84*84dots | 64*64dots |
| Cabinet size | W500mmxH500mmxD80mm | ||||
| Cabinet resolution | 256*256dots | 192*192dots | 168*168dots | 168*168dots | 128*128dots |
| Material | Die-casting aluminum | ||||
| Cabinet Weight | 3.5kg±5% | ||||
| Curve | Conner 90° | ||||
| Medule Maintenance | Rear | ||||
| Scan method | 1/32 | 1/32 | 1/21 | 1/21 | 1/16 |
| Brightness | ≥1000cd/㎡ | ≥4500cd/㎡ | |||
| Refresh rate | 3840-7680HZ | 3840-7680HZ | |||
| Input Voltage | AC220V/50Hz or AC110V/60Hz | AC220V/50Hz or AC110V/60Hz | |||
| Power Consumption[Max] | ≤600W/㎡ | ≤800W/㎡ | |||
| Power Consumption[Ave.] | 300W/㎡~380W/㎡ | 300W/㎡~380W/㎡ | |||
| lP rating | IP31 | IP65 | |||
