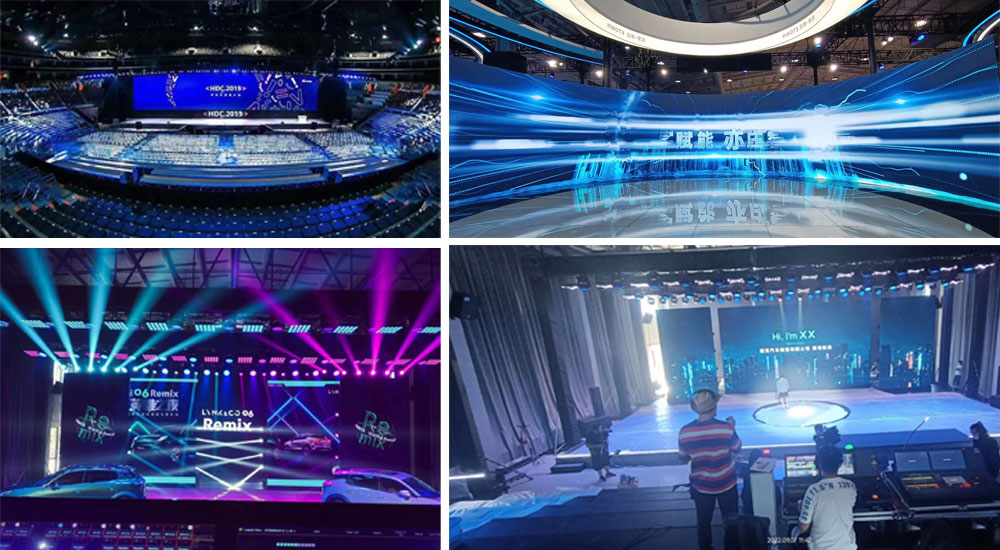

It is used in stage rental, song and dance party, all kinds of conferences, exhibitions, stadiums, theaters, auditory-halls, lecture halls, multi-functional halls, conference rooms, performance halls, disco bars, nightclubs, TV stations...
Using equal-current power supply, in case of emergency (power supply burned off), can play the performance normally.
Unified power supply, easy to upgrade, support P3.91-P1.95 module replacement, upgrade

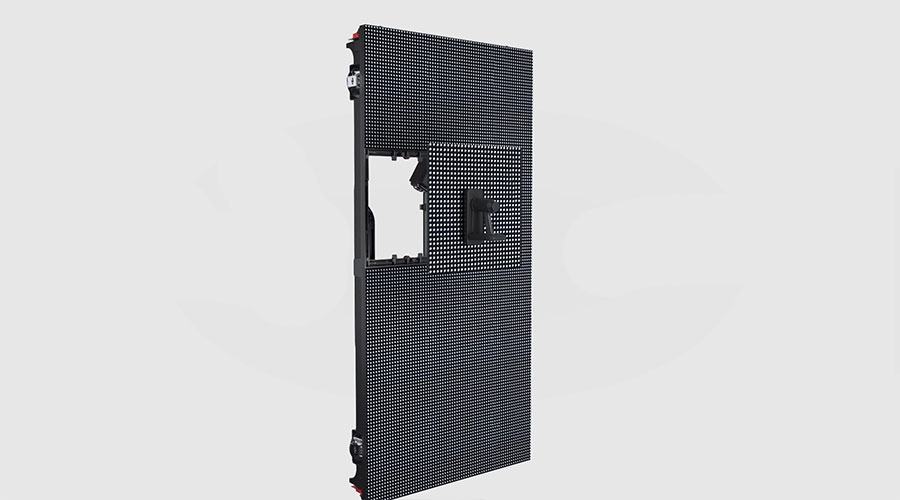

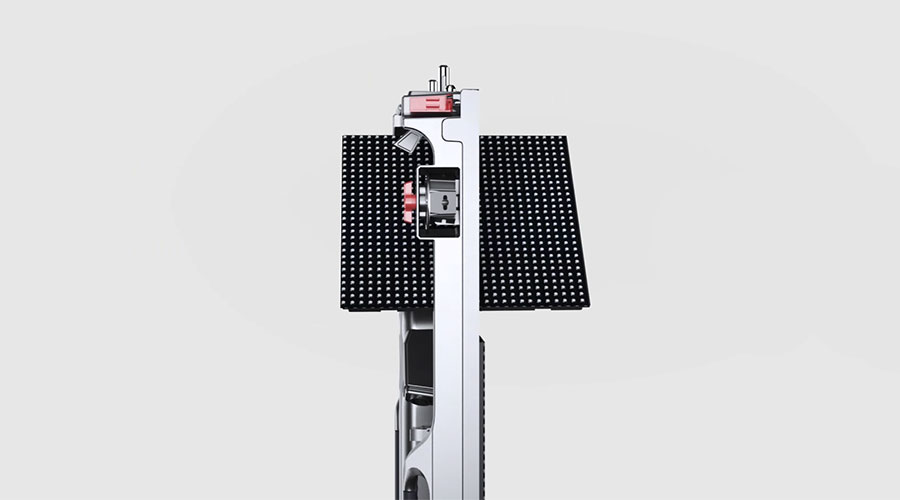

Without opening the box, the display module and power box can be directly disassembled from the front for maintenance and replacement.
Can achieve 6°, 3° inner arc
External arc 6°, 3° adjustment
Add high strength protective glue to prevent moisture and dust, and extend the service life of the product. It can be used on rainy and cloudy days as well as dry and dusty days.
Using large modules, each box only 8 modules, reduce internal connection, improve product stability.

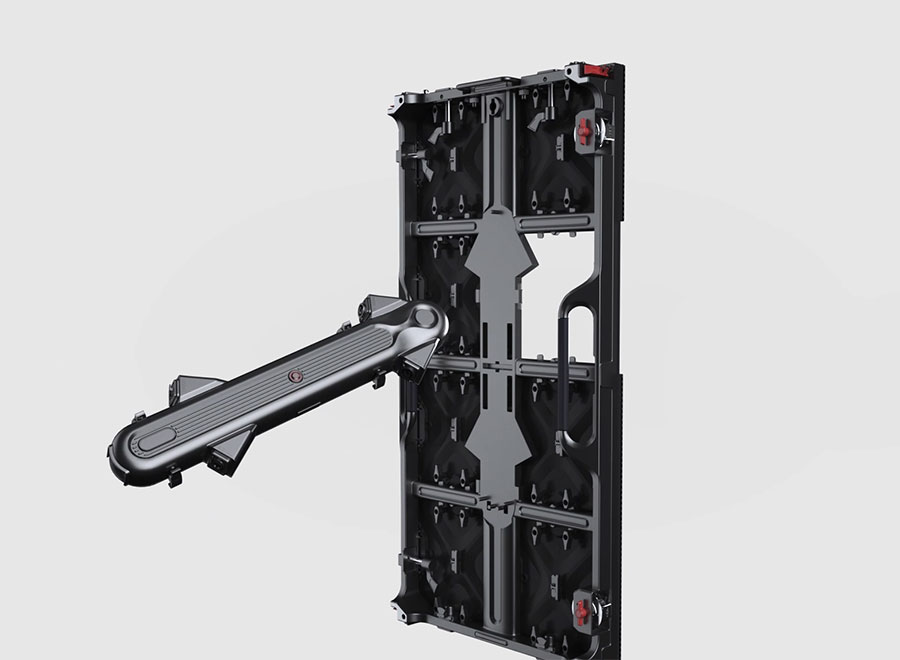

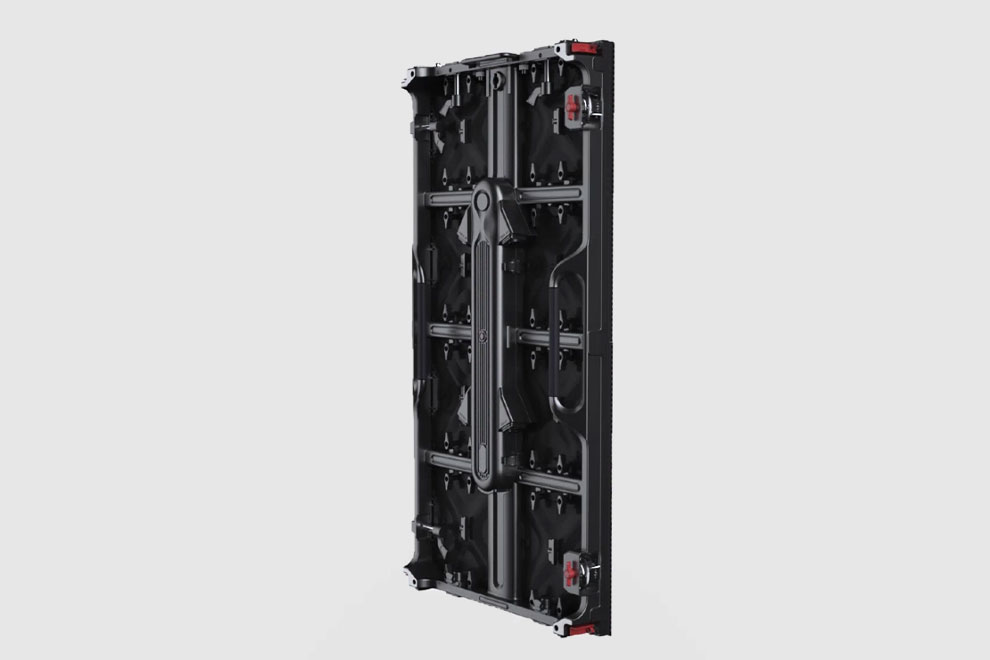

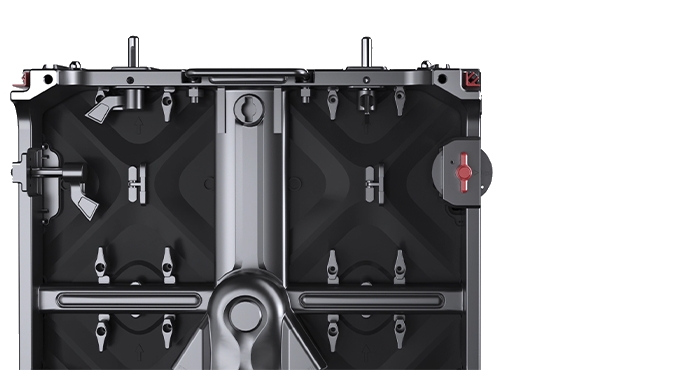

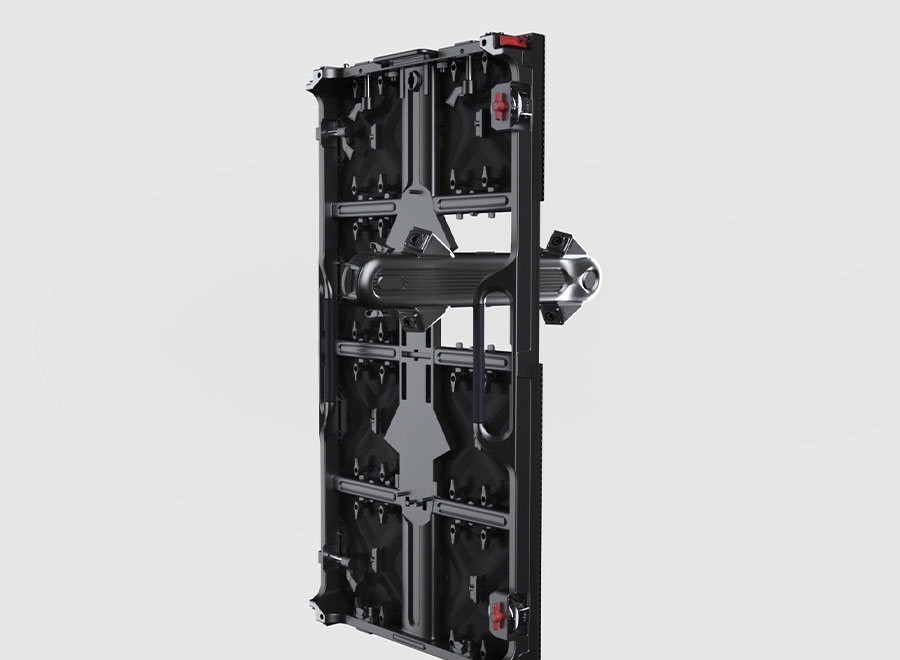

All aluminum box die-casting molding, each box weight is only 7.5kg, thickness is only 80mm; Let the display installation, disassembly and handling more convenient, fast.

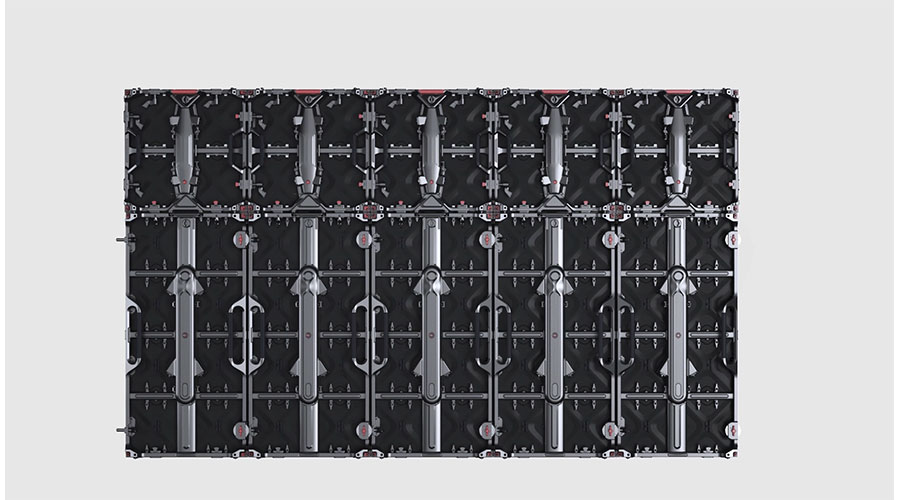

The private mold is adopted to form the die-casting aluminum box body, which reduces the gap of the whole screen assembly and improves the smoothness of the product. At the same time, it can be used together with 500M models

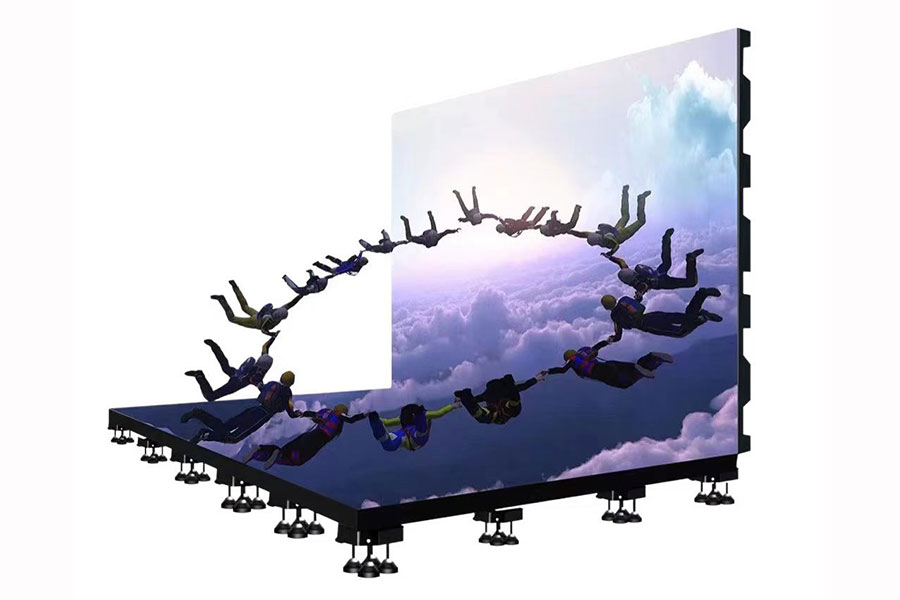

The built-in IC sensor can interact when someone touches it,
Add high-strength protective glue to prevent moisture and dust, and increase the service life of the product. It can be used in rainy and cloudy days and dry and dusty days.
| Model /Item | Indoor P1.25 | Indoor p1.56 | Indoor p1.95 | Indoor P2.5 | indoor P2.604 | Indoor p2.97 | Indoor p3.91 | Outdoor P1.95 | 0utdoor P2.604 | 0utdoor P2.97 | 0utdoor P3.91 | outdoor p4.81 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pixel Pitch | 1.25mm | 1.56mm | 1.95mm | 2.5mm | 2.604mm | 2.97mm | 3.91mm | 1.95mm | 2.604mm | 2.97mm | 3.91mm | 4.81mm |
| Lamp size | SMD1010 | SMD1212 | SMD1212 | SMD2020 | SMD1415 | SMD1415 | SMD2020 | SMD1212 | SMD1515 | SMD1515 | SMD1820 | SMD1820 |
| Pixel density | 640000dots/sqm | 409600dots/sqm | 262144dots/sqm | 160000dots/sqm | 147456dots/sqm | 112896dots/sqm | 65536dots/sqm | 262144dots/sqm | 147456dots/sqm | 112896dots/sqm | 65536dots/sqm | 43264dots/sqm |
| Module size | W250mmxH250mm | W250mmxH250mm | ||||||||||
| Module resolution | 200*200dots | 160*160dots | 128*128dots | 100*100dots | 96*96dots | 84*84dots | 64*64dots | 128*128dots | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Cabinet size | W500mmxH500mmxD80mm | W500mmxH500mmxD80mm | ||||||||||
| Cabinet resolution | 400*400dots | 320*320dots | 256*256dots | 200*200dots | 192*192dots | 168*168dots | 128*128dots | 256*256dots | 192*192dots | 168*168dots | 128*128dots | 104*104dots |
| Material | Die-casting aluminum | |||||||||||
| Cabinet Weight | 6.0kg±5% | |||||||||||
| Curve | (Convex) -10° ,-5° ,+5° ,+10°(Concave) /0° | |||||||||||
| Medule Maintenance | Front / Rear | |||||||||||
| Scan method | 1/50 | 1/40 | 1/32 | 1/25 | 1/32 | 1/21 | 1/16 | 1/32 | 1/32 | 1/21 | 1/16 | 1/16 |
| Brightness | ≥1000cd/㎡ | ≥4500cd/㎡ | ||||||||||
| Refresh rate | 3840-7680HZ | 3840-7680HZ | ||||||||||
| Input Voltage | AC220V/50Hz or AC110V/60Hz | AC220V/50Hz or AC110V/60Hz | ||||||||||
| Power Consumption[Max] | ≤600W/㎡ | ≤800W/㎡ | ||||||||||
| Power Consumption[Ave.] | 300W/㎡~380W/㎡ | 300W/㎡~380W/㎡ | ||||||||||
| lP rating | IP31 | IP65 |
