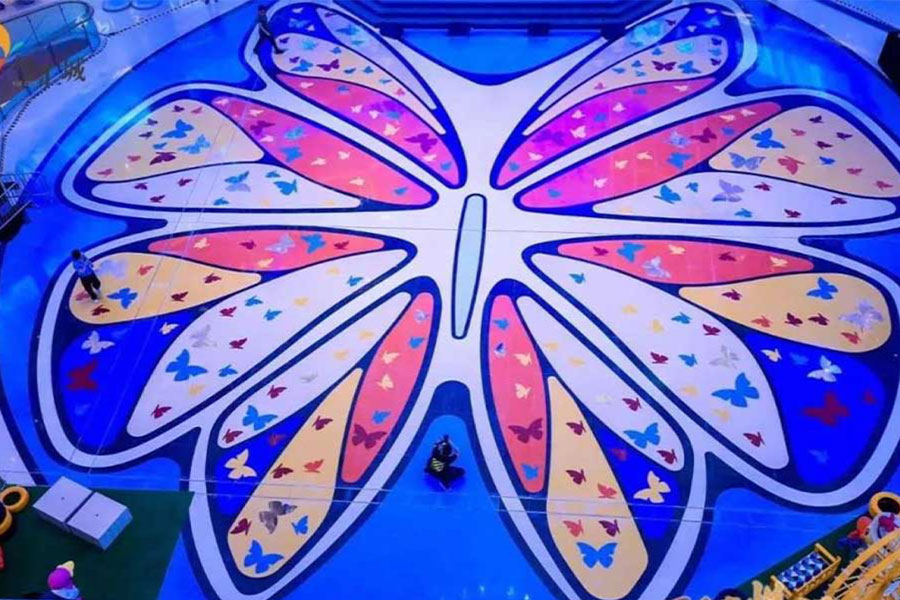

Suitable for stage, concert, performance and other places
With a 12% weight reduction compared to the Carbon series, the CB5 MarkII offers a stronger structure, while reducing the weight.

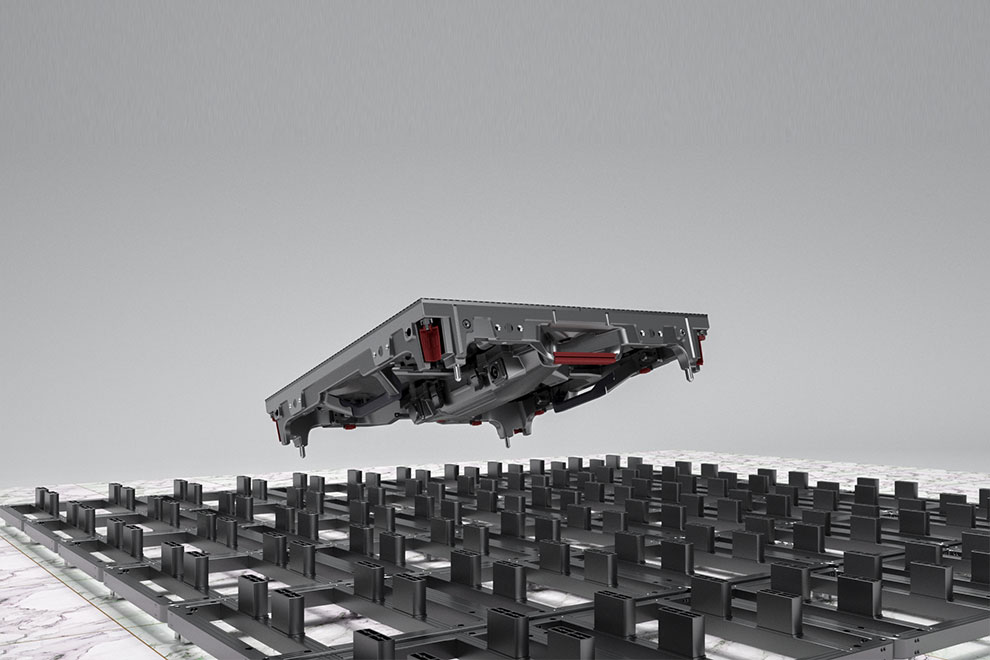

Universal Module and Mask The CB MarkII panel is easier to install and maintain. The module and mask design guarantee efficient servicing.
With a 12% weight reduction compared to the Carbon series, the CB5 MarkII offers a stronger structure, while reducing the weight.
Universal Module and Mask The CB MarkII panel is easier to install and maintain. The module and mask design guarantee efficient servicing.
With a 12% weight reduction compared to the Carbon series, the CB5 MarkII offers a stronger structure, while reducing the weight.
| Model /Ltem | Indoor P2.6 | Indoor P2.97 | Indoor P3.91 | Indoor P4.81 |
|---|---|---|---|---|
| Pixel Pitch | 2.6mm | 2.97mm | 3.91mm | 4.81mm |
| Module resolution | 96×96dost | 84×84dost | 64×64dost | 52×52dost |
| Module size | 250×250mm | |||
| Module weight | 0.35KG | |||
| Mumber of modules | 4pcs | |||
| Cabinet tesolution | 192×192dost | 168×168dost | 128×128dost | 104×104dost |
| Cabinet size | 500×500mm | |||
| Box weight | 7.5KG | |||
| Pixel density | 147456 dots/sqm | 112896 dots/sqm | 65536 dots/sqm | 43265 dots/sqm |
| Interative way | 外置雷达互动(External radar interaction) 内置感应互动(Built-in sensor interaction) | |||
| Refresh rate | ≥OR 3840HZ | |||
| Input voltage | AC220V/50HZ OR AC110V/60HZ | |||
| Electricity consumption | 660/220 W/m2 | |||
| Protection level | IP35 | |||
| Perspective | 水平140°垂直140°（Horizontal 140°Vertical 140° | |||
| Carrying capacity | 2T | |||
| Brightness | ≥1000cd/㎡ | ≥2000cd/㎡ | ||
| Warranty | 3years | |||
