The new PSU box is designed to optimize heat dissipation. This results in a stable LED performance, specially in outdoor conditions when used on high brightness.
With a 12% weight reduction compared to the Carbon series, the CB5 MarkII offers a stronger structure, while reducing the weight. Measuring 600*1200mm, the panel weighs only 17kg/m2; Ideal for touring in combination with frame and dolly options. The reduced weight and easy handling will lower costs on transportation and labor.
Universal Module and Mask The CB MarkII panel is easier to install and maintain. The module and mask design guarantee efficient servicing. The modules can be exchanged on each position and the mask can be snapped on and off easily.
Magnet-Assisted Assembly LED wall assembly now is much easier and labor-saving with the modified magnet-assisted assembly.
Universal Module and Mask The CB MarkII panel is easier to install and maintain. The module and mask design guarantee efficient servicing. The modules can be exchanged on each position and the mask can be snapped on and off easily.
Magnet-Assisted Assembly LED wall assembly now is much easier and labor-saving with the modified magnet-assisted assembly.
Universal Module and Mask The CB MarkII panel is easier to install and maintain. The module and mask design guarantee efficient servicing. The modules can be exchanged on each position and the mask can be snapped on and off easily.
Magnet-Assisted Assembly LED wall assembly now is much easier and labor-saving with the modified magnet-assisted assembly.
Universal Module and Mask The CB MarkII panel is easier to install and maintain. The module and mask design guarantee efficient servicing. The modules can be exchanged on each position and the mask can be snapped on and off easily.
Magnet-Assisted Assembly LED wall assembly now is much easier and labor-saving with the modified magnet-assisted assembly.
Universal Module and Mask The CB MarkII panel is easier to install and maintain. The module and mask design guarantee efficient servicing. The modules can be exchanged on each position and the mask can be snapped on and off easily.
Magnet-Assisted Assembly LED wall assembly now is much easier and labor-saving with the modified magnet-assisted assembly.

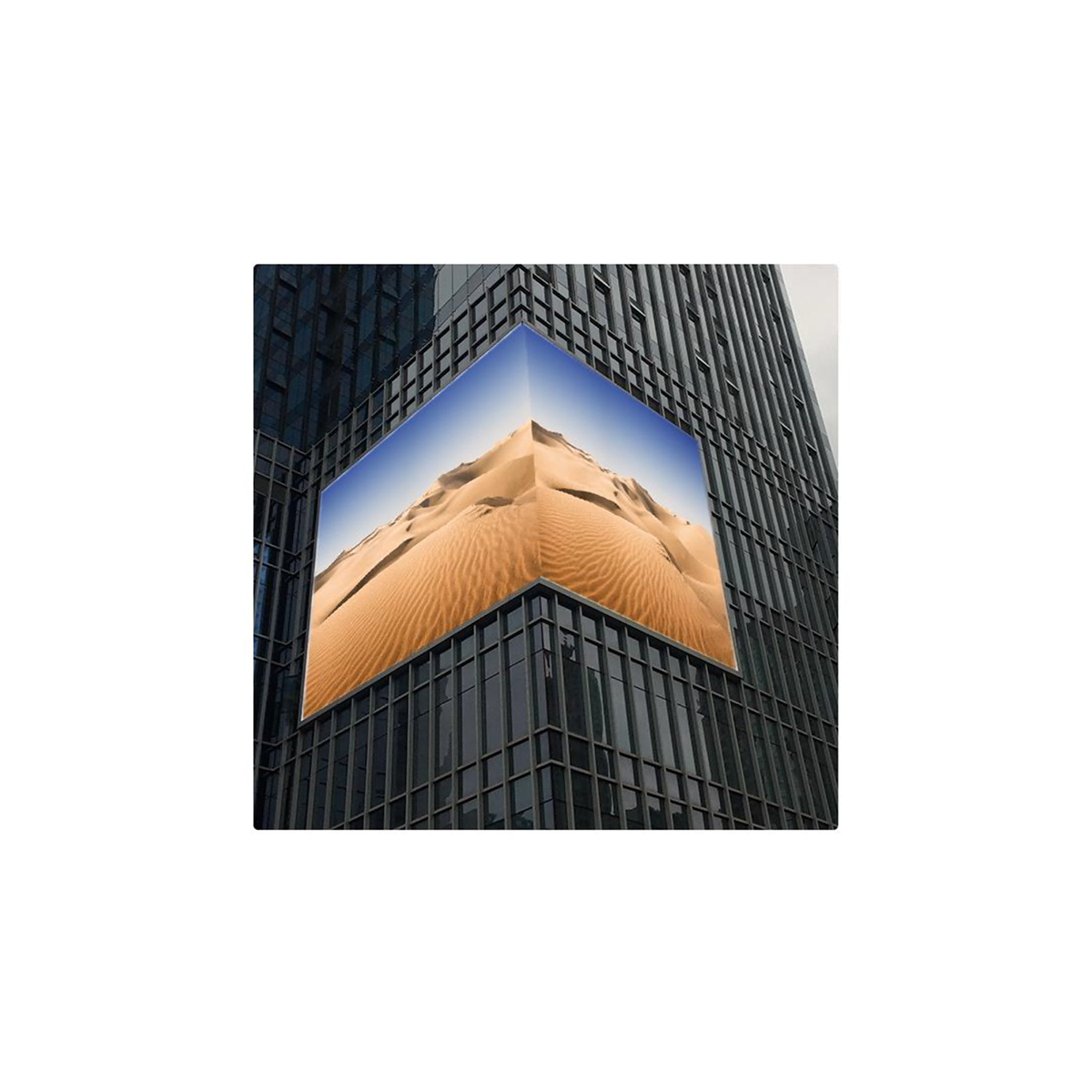

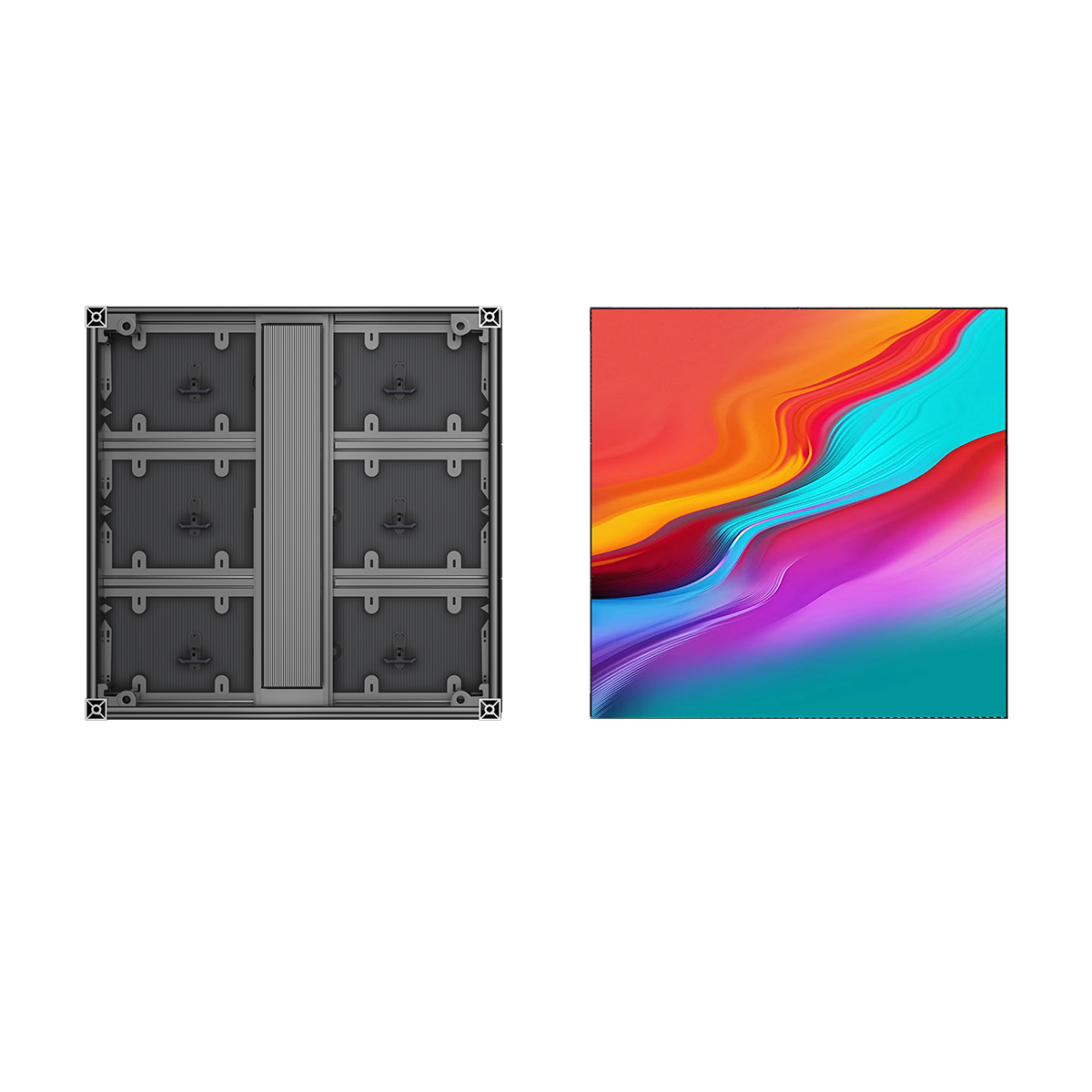

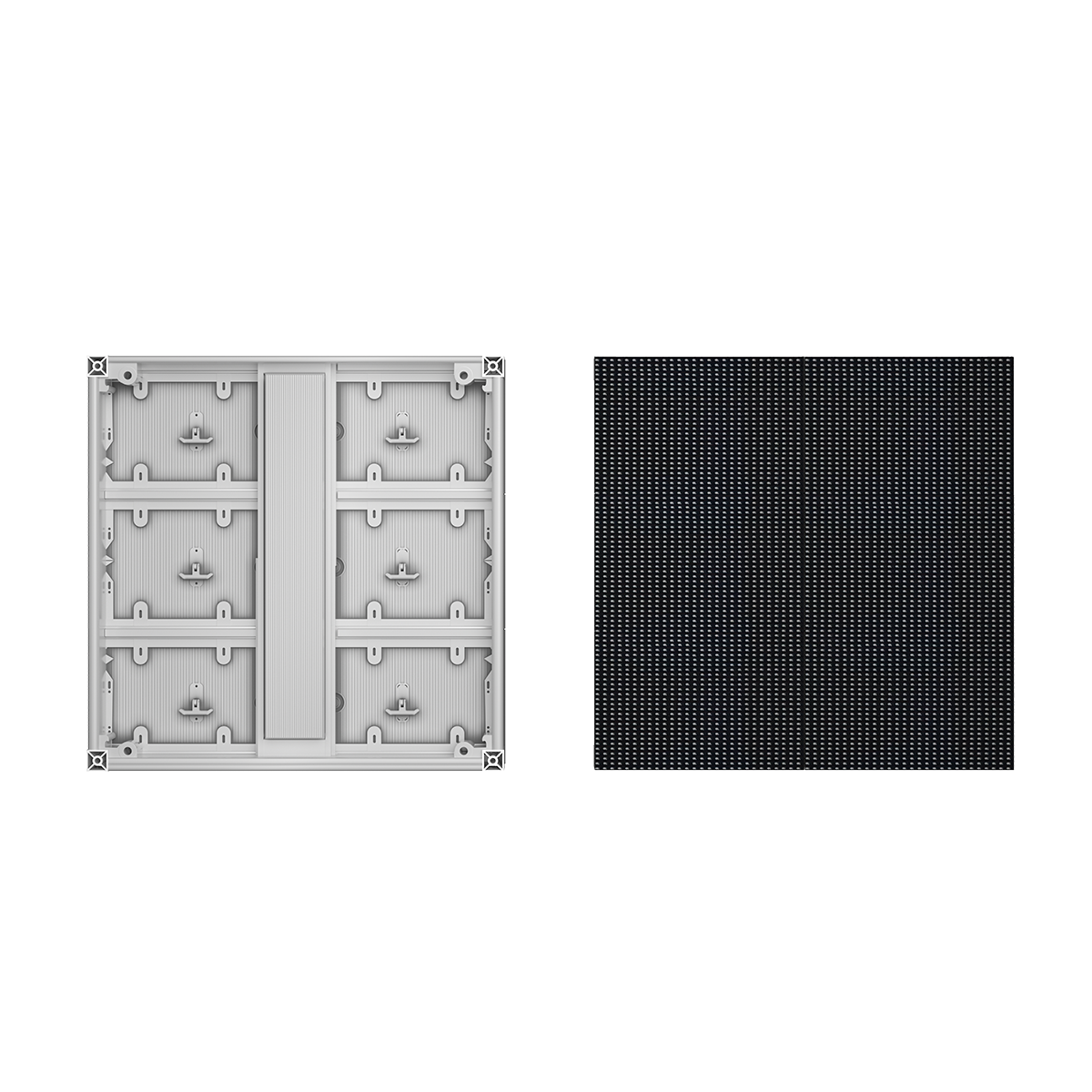

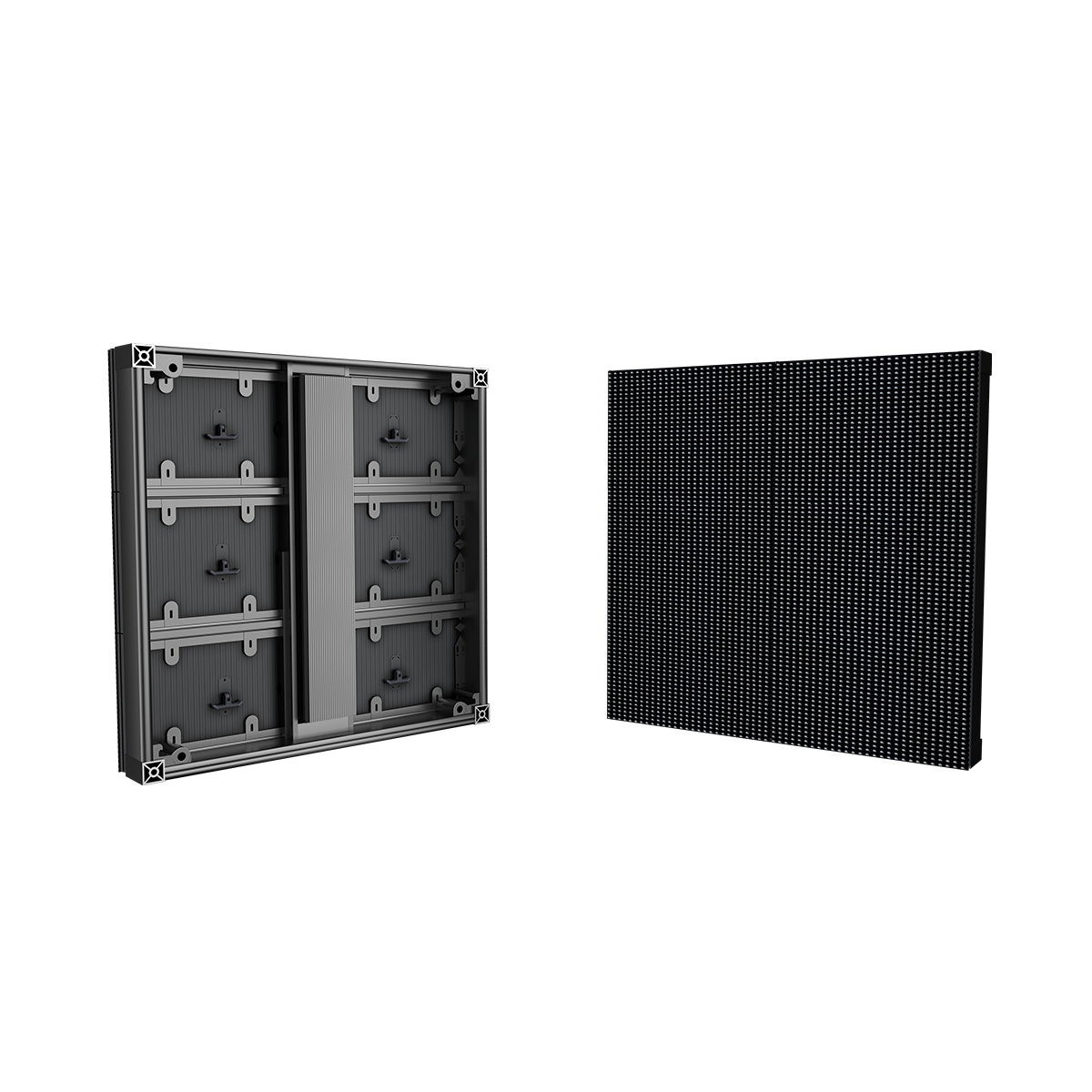

Outdoor fixed LED display is a high-impact visual solution specially designecfor the external environment, Providingbright and dynamic visuals, ensurinoptimal visibility even in bright sunlightAt the same time, it is waterproof ancmoisture-proof, and its display effectwill not be affected in extreme weatherCommonly used in shopping malls,buildings,outdoor advertising, etc.
| Model /Item | Outdoor p5.7 | 0utdoor P6.67 | 0utdoor P10 |
|---|---|---|---|
| Pixel Pitch | 5.7mm | 6.67mm | 10mm |
| Lamp size | SMD2727 | SMD2727 | SMD2727 |
| Pixel density | 30625dots/sqm | 22476dots/sqm | 10000dots/sqm |
| Module size | W480mm x H320mm | ||
| Module resolution | 84*56dots | 72*48dots | 48*32dots |

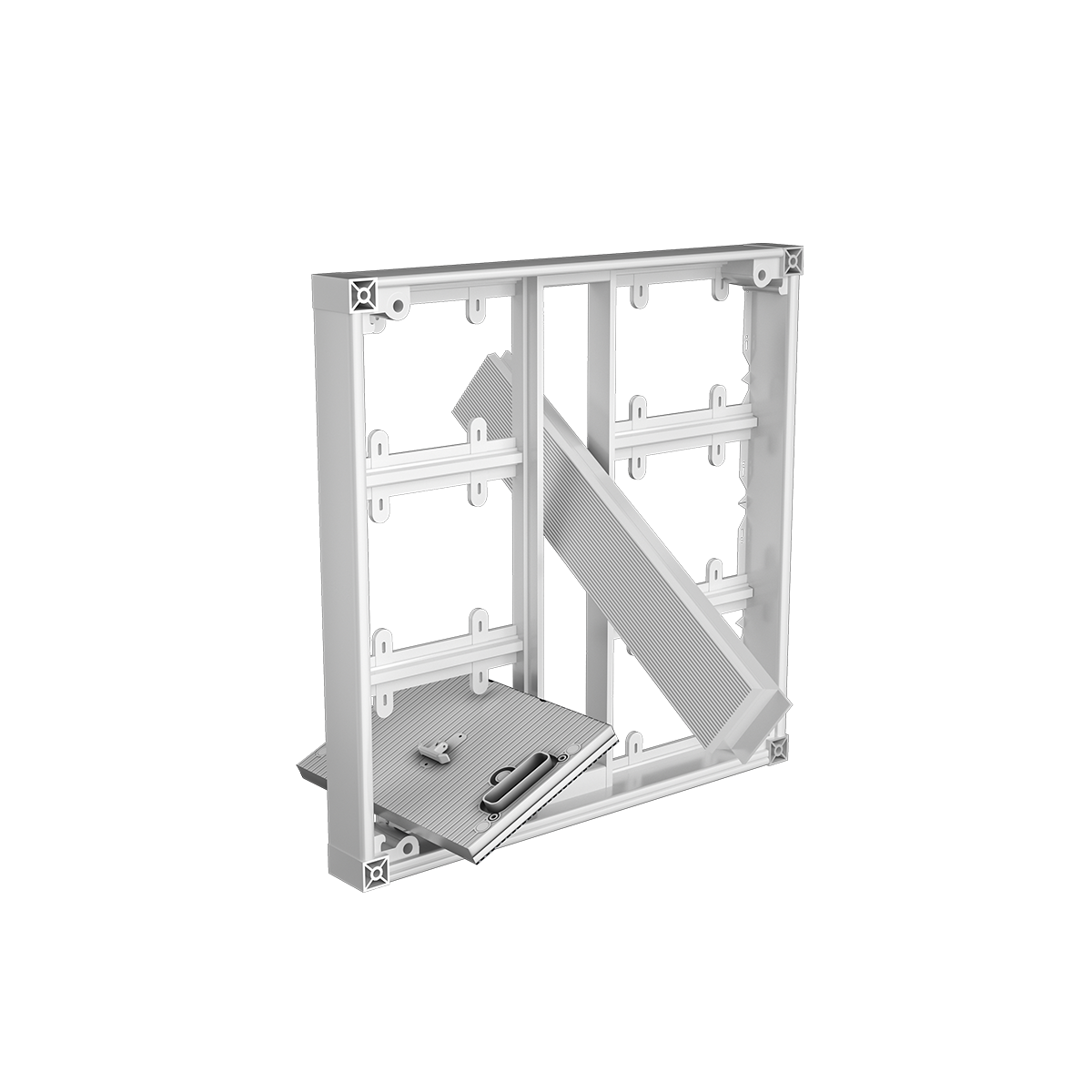

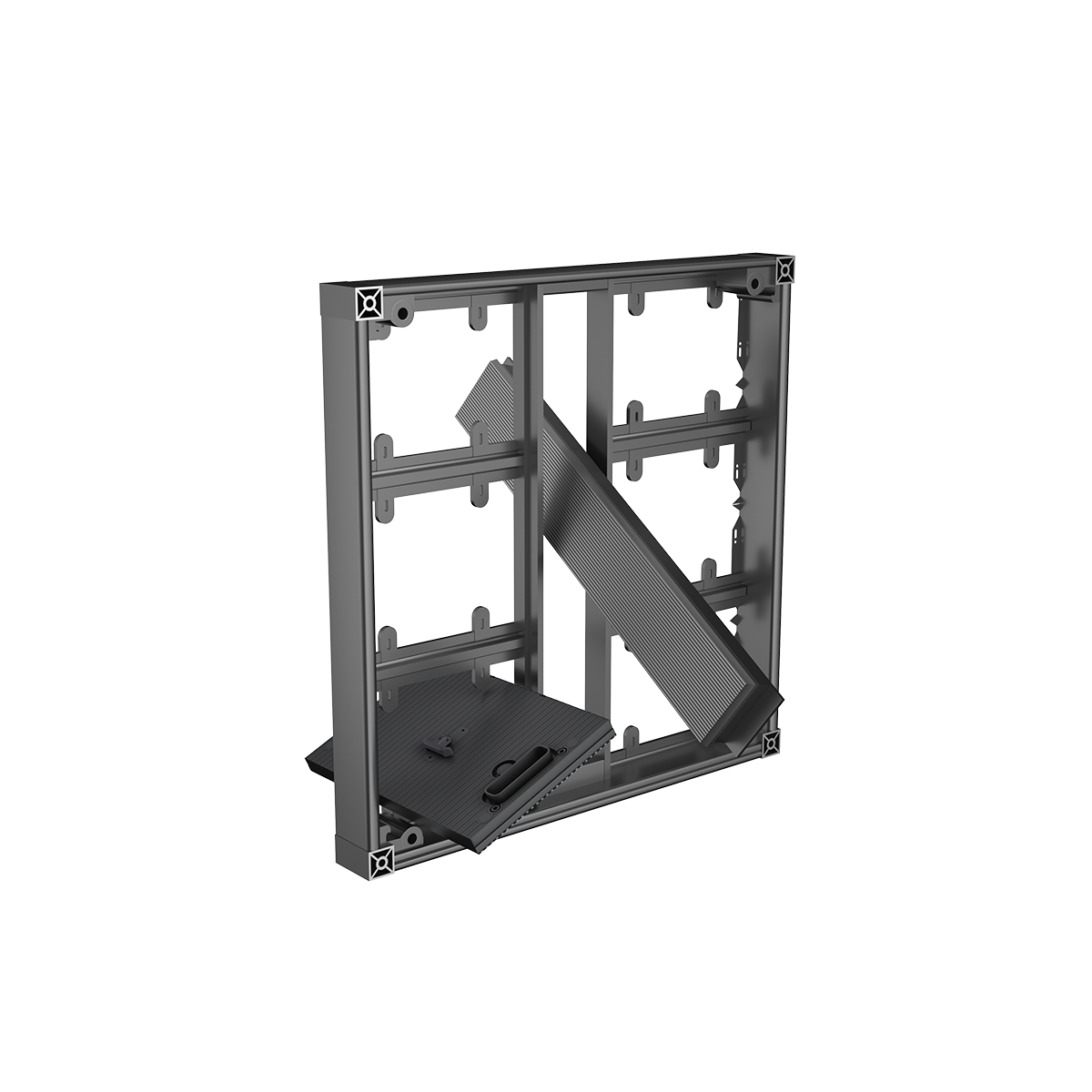

| Cabinet size | W960*H960mm*D100mm | ||
| Cabinet resolution | 168*168dots | 144*144dots | 96*96dots |
| Material | Aluminum | ||
| Cabinet Weight | 24kg士5% | ||
| Scan method | 1/21 | 1/21 | 1/16 |
| Brightness | 6500-8500cd/m | ||
| Refresh rate | 3840-7680HZ | ||
| Input Voltage | AC220V/50Hz orAC110V/60Hz | ||
| Power Consumption[Max] | 1000w/㎡ | ||
| Power Consumption[Ave.] | 600w/㎡ | ||
| lP rating | IP65 | ||
