The new PSU box is designed to optimize heat dissipation. This results in a stable LED performance, specially in outdoor conditions when used on high brightness.
With a 12% weight reduction compared to the Carbon series, the CB5 MarkII offers a stronger structure, while reducing the weight. Measuring 600*1200mm, the panel weighs only 17kg/m2; Ideal for touring in combination with frame and dolly options. The reduced weight and easy handling will lower costs on transportation and labor.
Universal Module and Mask The CB MarkII panel is easier to install and maintain. The module and mask design guarantee efficient servicing. The modules can be exchanged on each position and the mask can be snapped on and off easily.

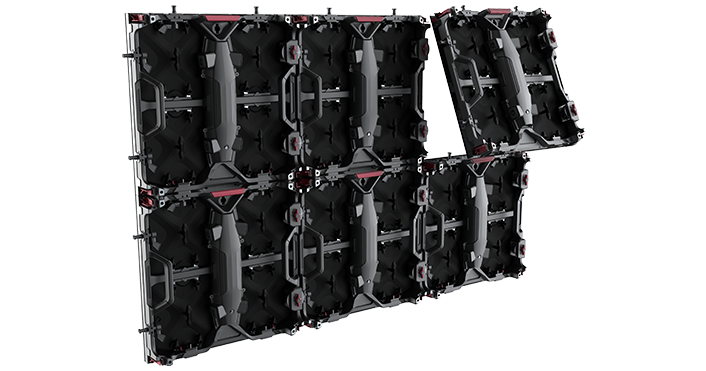

Magnet-Assisted Assembly LED wall assembly now is much easier and labor-saving with the modified magnet-assisted assembly.

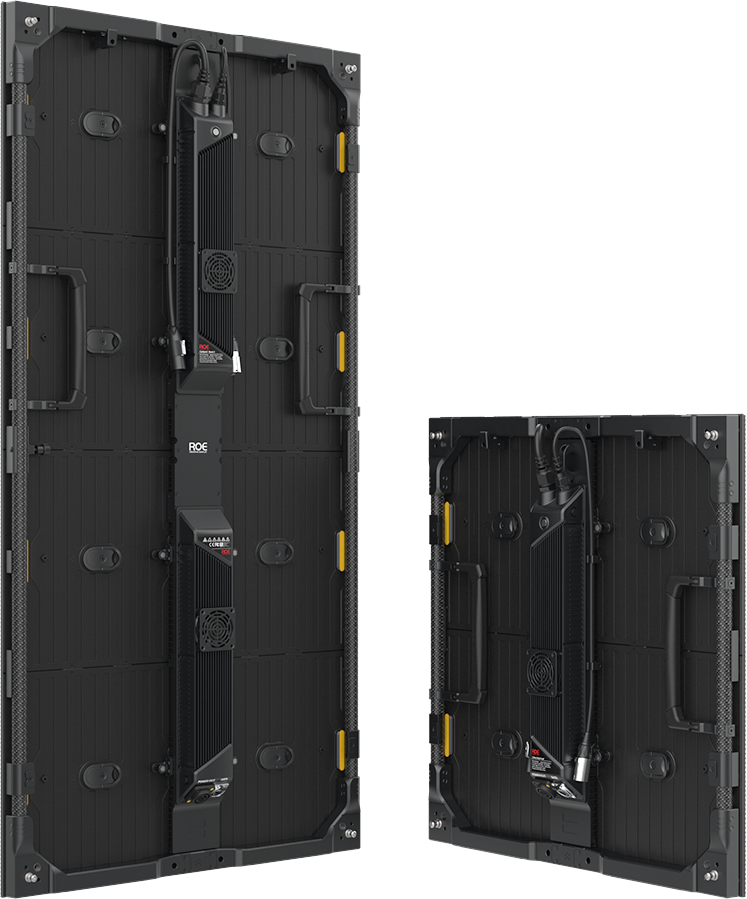

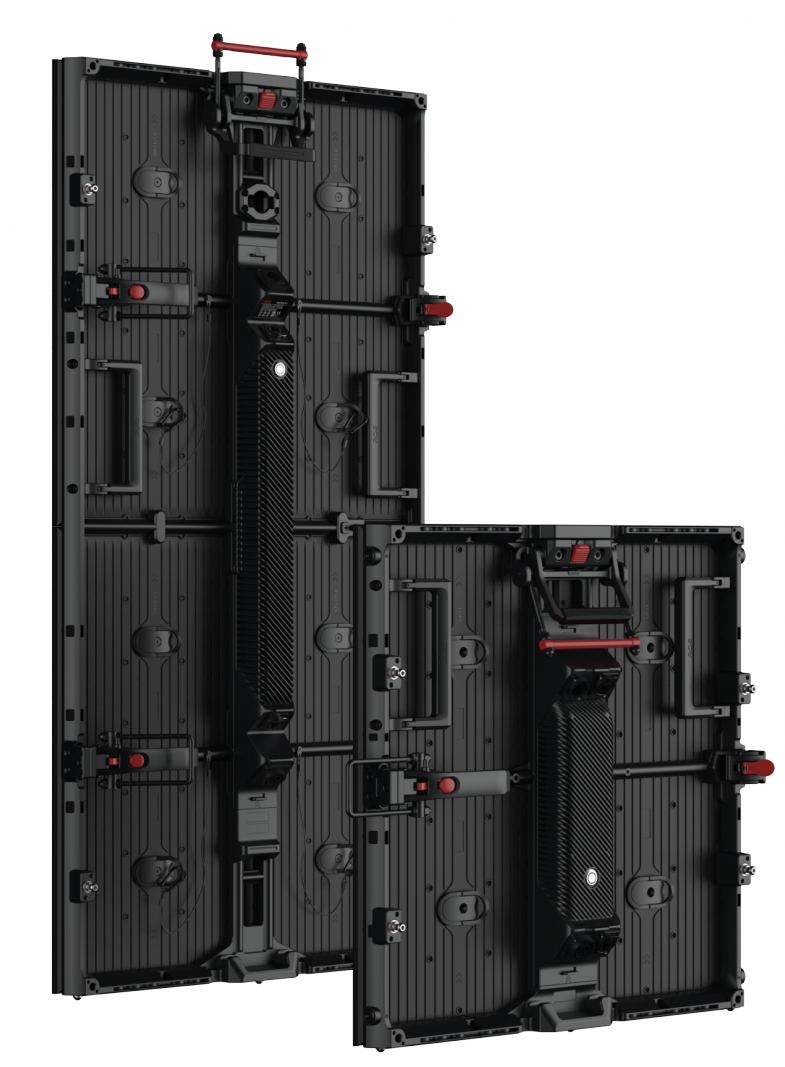

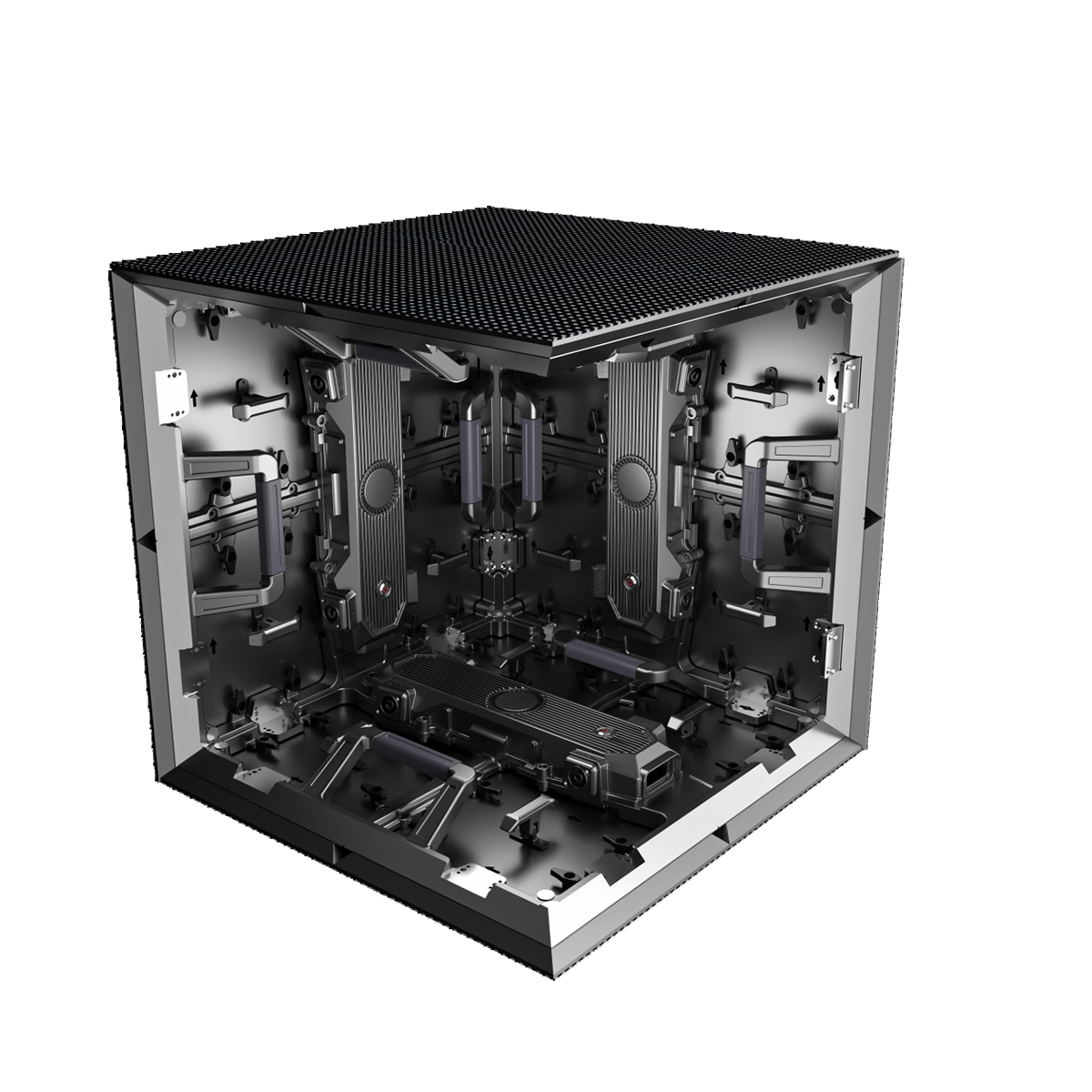

The CB MarkII panels are available in two sizes, the standard 600 x 1200mm (w x h) panel and a half-panel measuring 600 x 600mm. Graphite also offers various solutions for corners and edges - ask for our options!
The CB MarkII panels are available in two sizes, the standard 600 x 1200mm (w x h) panel and a half-panel measuring 600 x 600mm. Graphite also offers various solutions for corners and edges - ask for our options!
Add high-strength protective glue to prevent moisture and dust, and increase the service life of the product. It can be used in rainy and cloudy days and dry and dusty days.
| Model /Item | Indoor P1.25 | Indoor p1.56 | Indoor p1.95 | Indoor P2.5 | indoor P2.604 | Indoor p2.97 | Indoor p3.91 | Outdoor P1.95 | 0utdoor P2.604 | 0utdoor P2.97 | 0utdoor P3.91 | outdoor p4.81 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pixel Pitch | 1.25mm | 1.56mm | 1.95mm | 2.5mm | 2.604mm | 2.97mm | 3.91mm | 1.95mm | 2.604mm | 2.97mm | 3.91mm | 4.81mm |
| Lamp size | SMD1010 | SMD1212 | SMD1212 | SMD2020 | SMD1415 | SMD1415 | SMD2020 | SMD1212 | SMD1515 | SMD1515 | SMD1820 | SMD1820 |
| Pixel density | 640000dots/sqm | 409600dots/sqm | 262144dots/sqm | 160000dots/sqm | 147456dots/sqm | 112896dots/sqm | 65536dots/sqm | 262144dots/sqm | 147456dots/sqm | 112896dots/sqm | 65536dots/sqm | 43264dots/sqm |
| Module size | W250mmxH250mm | W250mmxH250mm | ||||||||||
| Module resolution | 200*200dots | 160*160dots | 128*128dots | 100*100dots | 96*96dots | 84*84dots | 64*64dots | 128*128dots | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Cabinet size | W500mmxH500mmxD80mm | W500mmxH500mmxD80mm | ||||||||||
| Cabinet resolution | 400*400dots | 320*320dots | 256*256dots | 200*200dots | 192*192dots | 168*168dots | 128*128dots | 256*256dots | 192*192dots | 168*168dots | 128*128dots | 104*104dots |
| Material | Die-casting aluminum | |||||||||||
| Cabinet Weight | 6.0kg±5% | |||||||||||
| Curve | (Convex) -10° ,-5° ,+5° ,+10°(Concave) /0° | |||||||||||
| Medule Maintenance | Front / Rear | |||||||||||
| Scan method | 1/50 | 1/40 | 1/32 | 1/25 | 1/32 | 1/21 | 1/16 | 1/32 | 1/32 | 1/21 | 1/16 | 1/16 |
| Brightness | ≥1000cd/㎡ | ≥4500cd/㎡ | ||||||||||
| Refresh rate | 3840-7680HZ | 3840-7680HZ | ||||||||||
| Input Voltage | AC220V/50Hz or AC110V/60Hz | AC220V/50Hz or AC110V/60Hz | ||||||||||
| Power Consumption[Max] | ≤600W/㎡ | ≤800W/㎡ | ||||||||||
| Power Consumption[Ave.] | 300W/㎡~380W/㎡ | 300W/㎡~380W/㎡ | ||||||||||
| lP rating | IP31 | IP65 |
