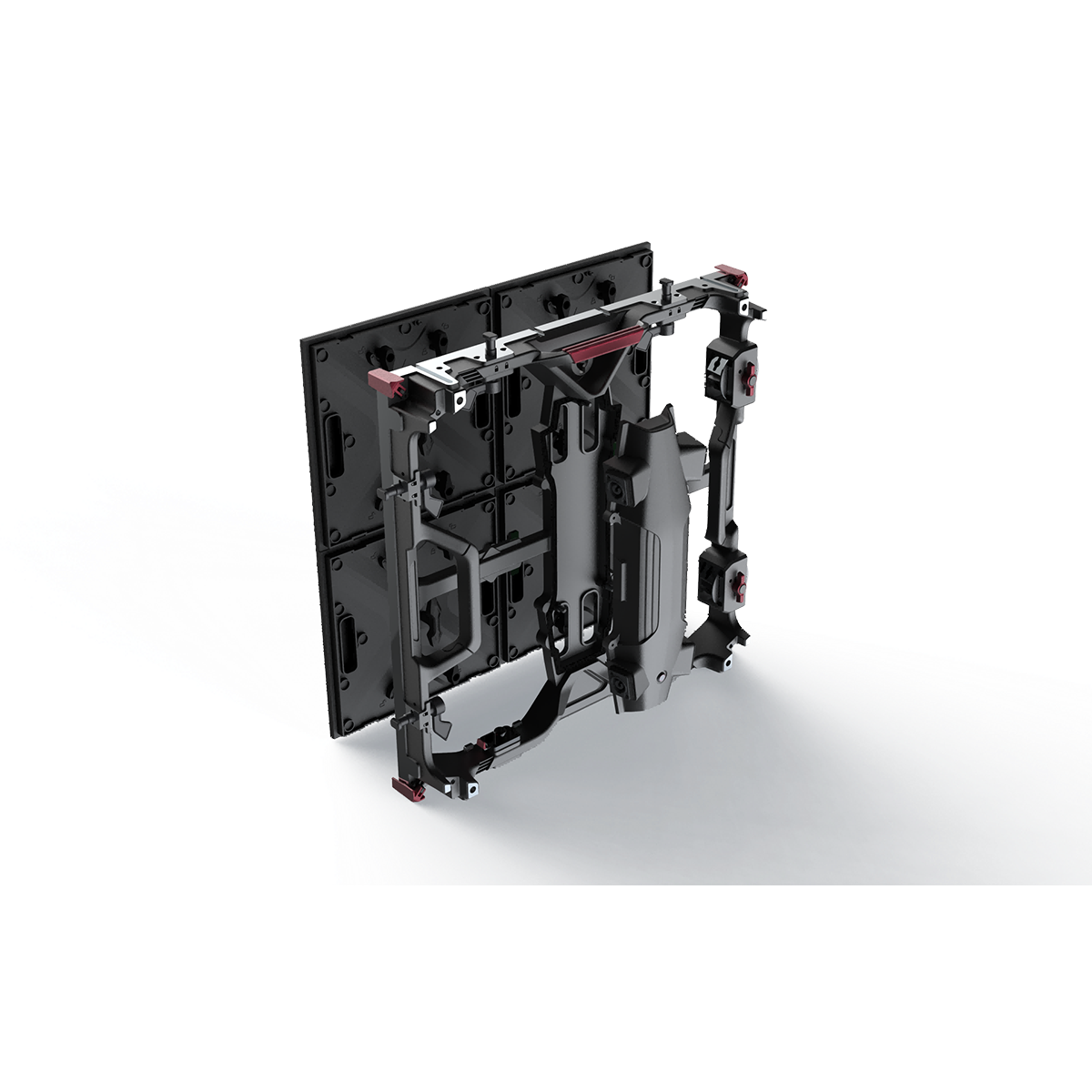

The new PSU box is designed to optimize heat dissipation. This results in a stable LED performance, specially in outdoor conditions when used on high brightness.
With a 12% weight reduction compared to the Carbon series, the CB5 MarkII offers a stronger structure, while reducing the weight. Measuring 600*1200mm, the panel weighs only 17kg/m2; Ideal for touring in combination with frame and dolly options. The reduced weight and easy handling will lower costs on transportation and labor.

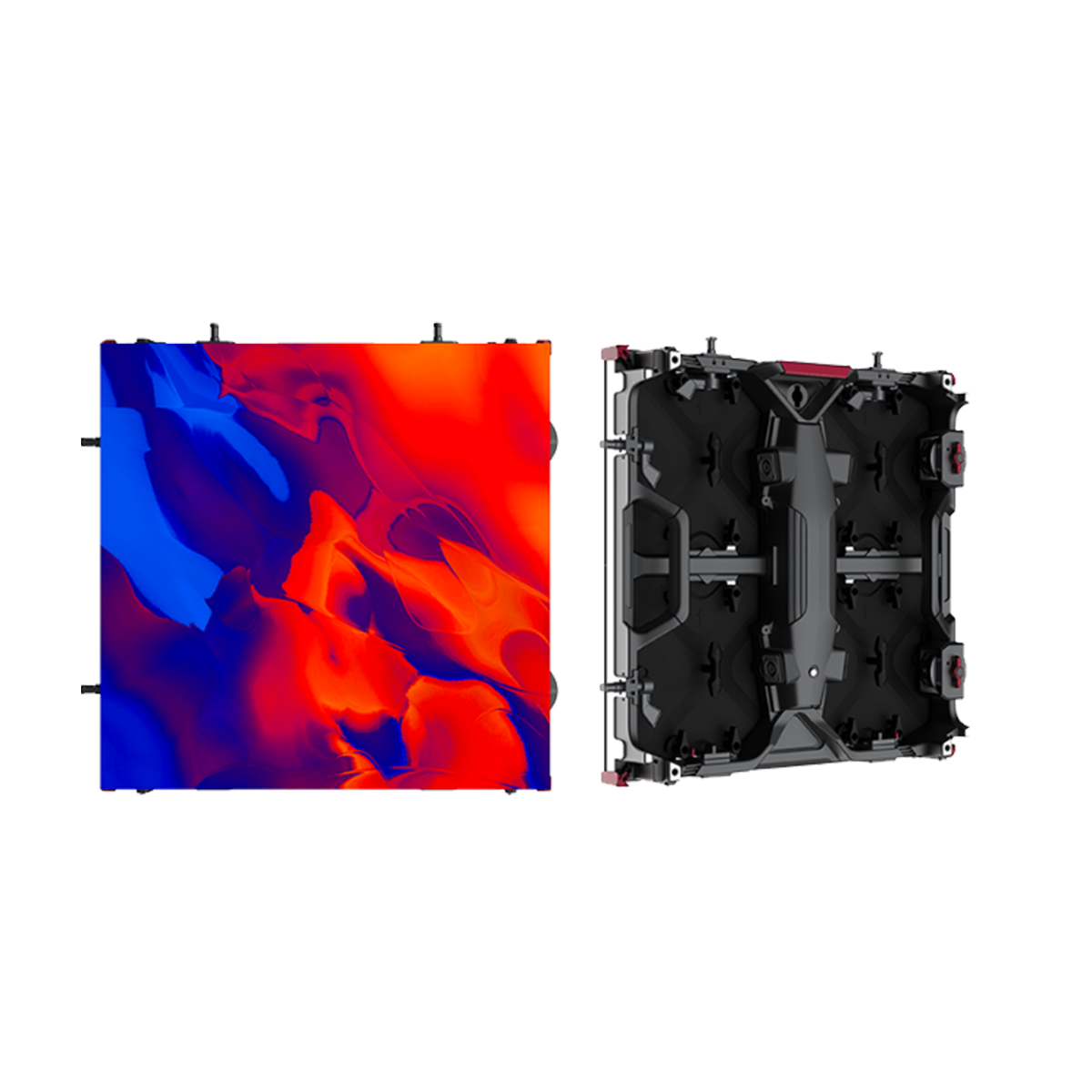

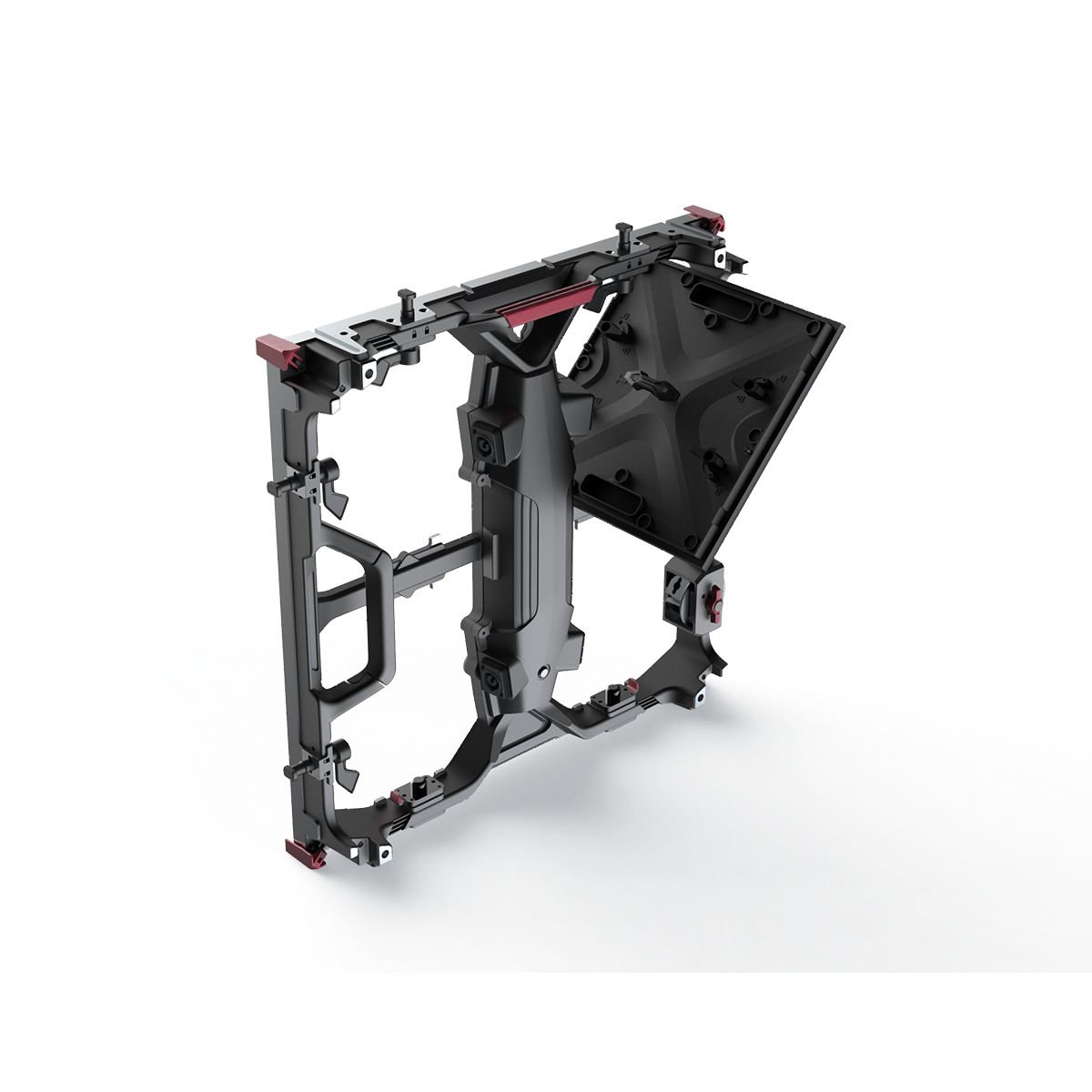

Universal Module and Mask The CB MarkII panel is easier to install and maintain. The module and mask design guarantee efficient servicing. The modules can be exchanged on each position and the mask can be snapped on and off easily.
Magnet-Assisted Assembly LED wall assembly now is much easier and labor-saving with the modified magnet-assisted assembly.
Universal Module and Mask The CB MarkII panel is easier to install and maintain. The module and mask design guarantee efficient servicing. The modules can be exchanged on each position and the mask can be snapped on and off easily.
Magnet-Assisted Assembly LED wall assembly now is much easier and labor-saving with the modified magnet-assisted assembly.
Universal Module and Mask The CB MarkII panel is easier to install and maintain. The module and mask design guarantee efficient servicing. The modules can be exchanged on each position and the mask can be snapped on and off easily.
Magnet-Assisted Assembly LED wall assembly now is much easier and labor-saving with the modified magnet-assisted assembly.
Universal Module and Mask The CB MarkII panel is easier to install and maintain. The module and mask design guarantee efficient servicing. The modules can be exchanged on each position and the mask can be snapped on and off easily.
Magnet-Assisted Assembly LED wall assembly now is much easier and labor-saving with the modified magnet-assisted assembly.
Universal Module and Mask The CB MarkII panel is easier to install and maintain. The module and mask design guarantee efficient servicing. The modules can be exchanged on each position and the mask can be snapped on and off easily.
Magnet-Assisted Assembly LED wall assembly now is much easier and labor-saving with the modified magnet-assisted assembly.
Universal Module and Mask The CB MarkII panel is easier to install and maintain. The module and mask design guarantee efficient servicing. The modules can be exchanged on each position and the mask can be snapped on and off easily.
Magnet-Assisted Assembly LED wall assembly now is much easier and labor-saving with the modified magnet-assisted assembly.

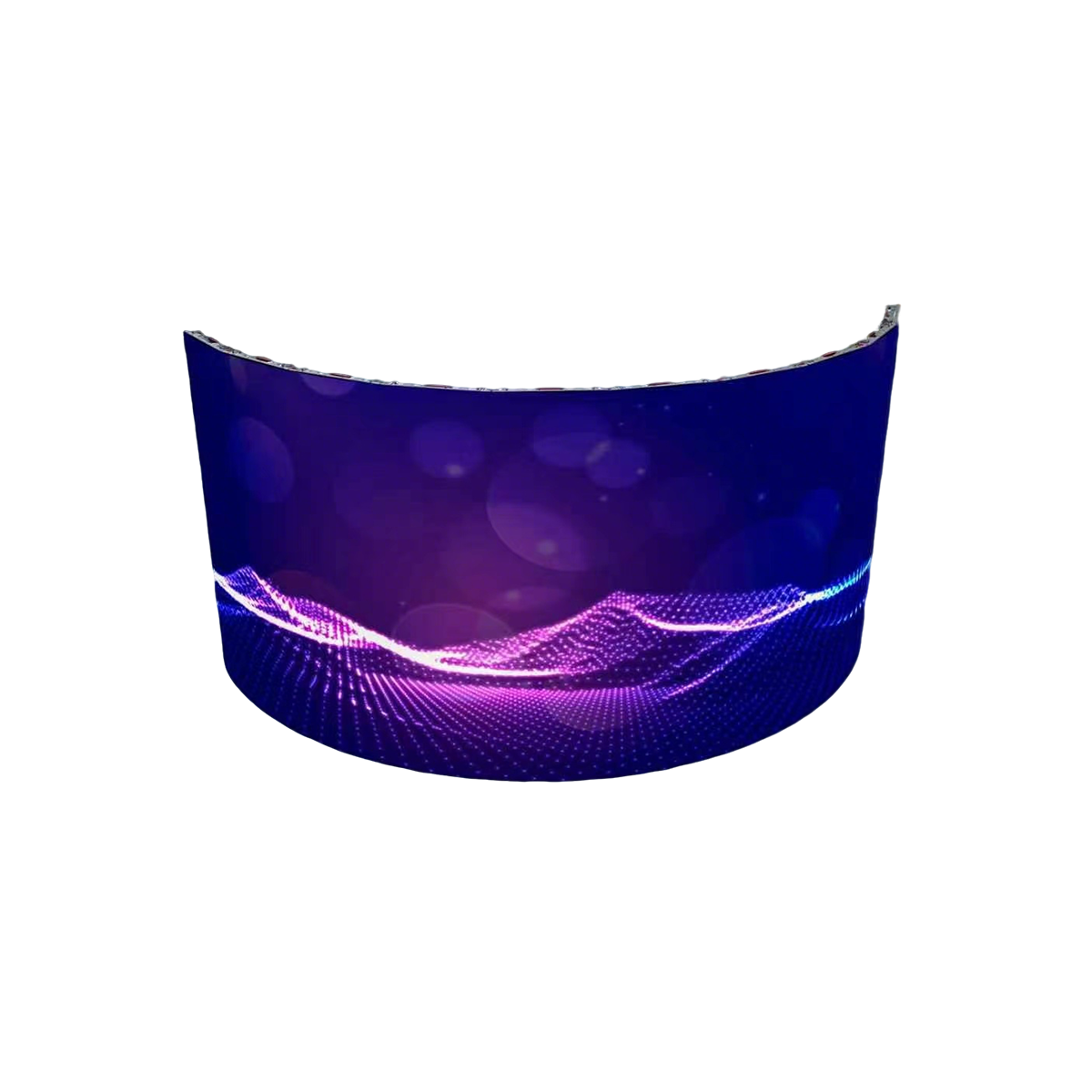

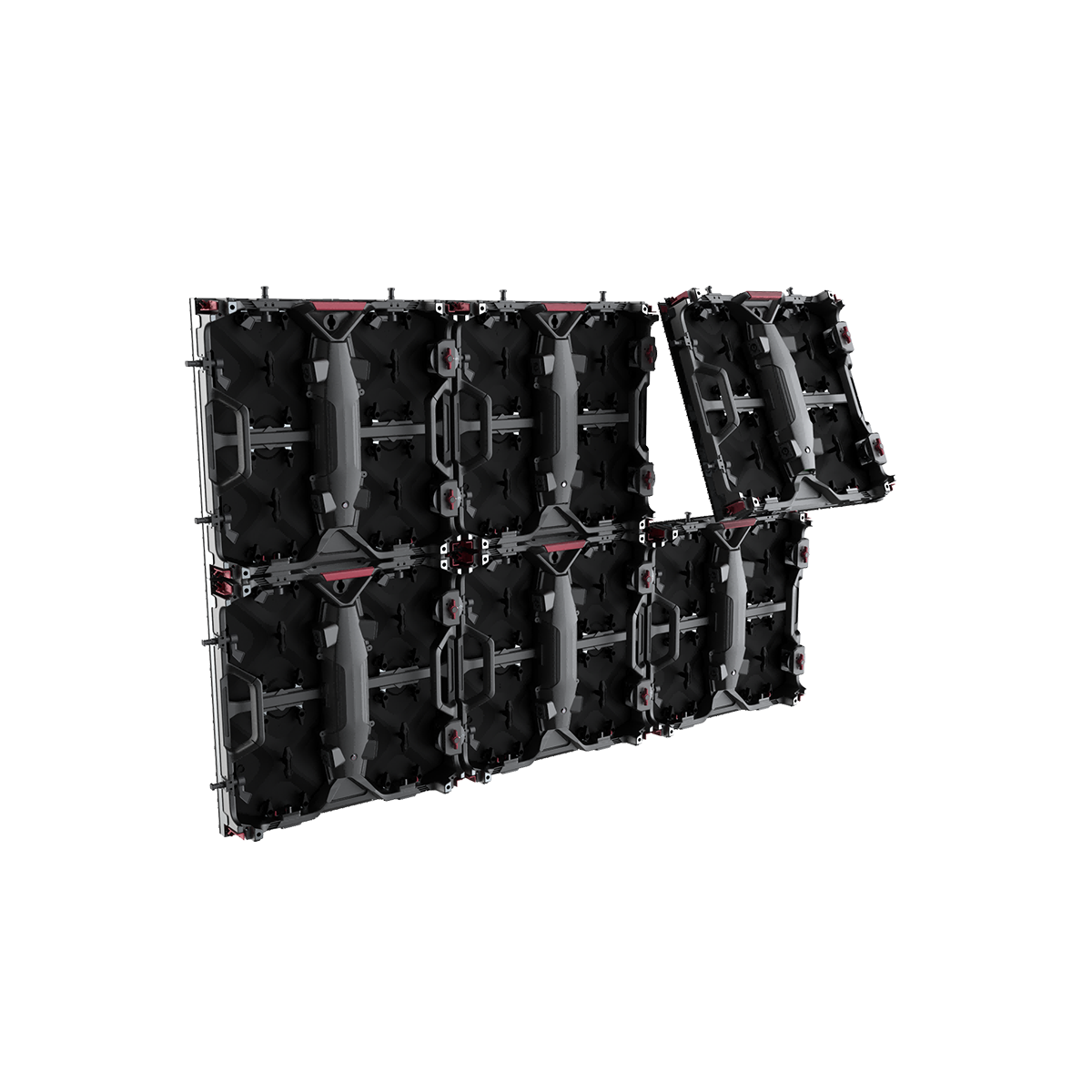

Can achieve 6°,3° inner arc
External arc 6°,3° adjustment

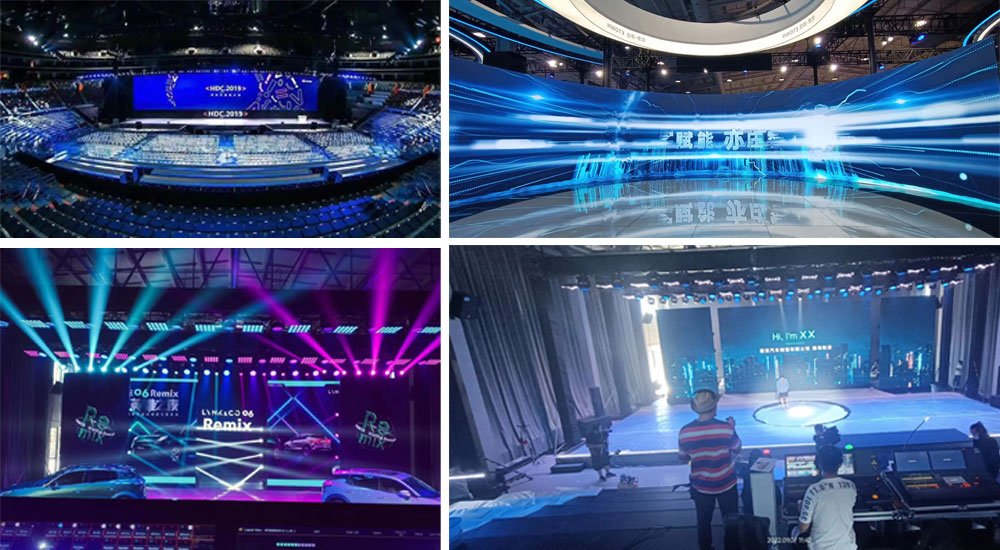

The structure of the rental screen is light, thin, guick to assemble and disassemble, and has diferent installation methodssuch as being fixed on a floor bracket, a wallbracket, a hanging rod, etc, it is usually used for events, exhibitions, concerts, con.ierences, and trade shows and other situations where high-quality visual displays are temporarily required.
| Model /Item | Indoor P1.25 | Indoor p1.56 | Indoor p1.95 | Indoor P2.5 | indoor P2.604 | Indoor p2.97 | Indoor p3.91 | Outdoor P1.95 | 0utdoor P2.604 | 0utdoor P2.97 | 0utdoor P3.91 | outdoor p4.81 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pixel Pitch | 1.25mm | 1.56mm | 1.95mm | 2.5mm | 2.604mm | 2.97mm | 3.91mm | 1.95mm | 2.604mm | 2.97mm | 3.91mm | 4.81mm |
| Lamp size | SMD1010 | SMD1212 | SMD1212 | SMD2020 | SMD1415 | SMD1415 | SMD2020 | SMD1212 | SMD1515 | SMD1515 | SMD1820 | SMD1820 |
| Pixel density | 640000dots/sqm | 409600dots/sqm | 262144dots/sqm | 160000dots/sqm | 147456dots/sqm | 112896dots/sqm | 65536dots/sqm | 262144dots/sqm | 147456dots/sqm | 112896dots/sqm | 65536dots/sqm | 43264dots/sqm |
| Module size | W250mmxH250mm | W250mmxH250mm | ||||||||||
| Module resolution | 200*200dots | 160*160dots | 128*128dots | 100*100dots | 96*96dots | 84*84dots | 64*64dots | 128*128dots | 96*96dots | 84*84dots | 64*64dots | 52*52dots |

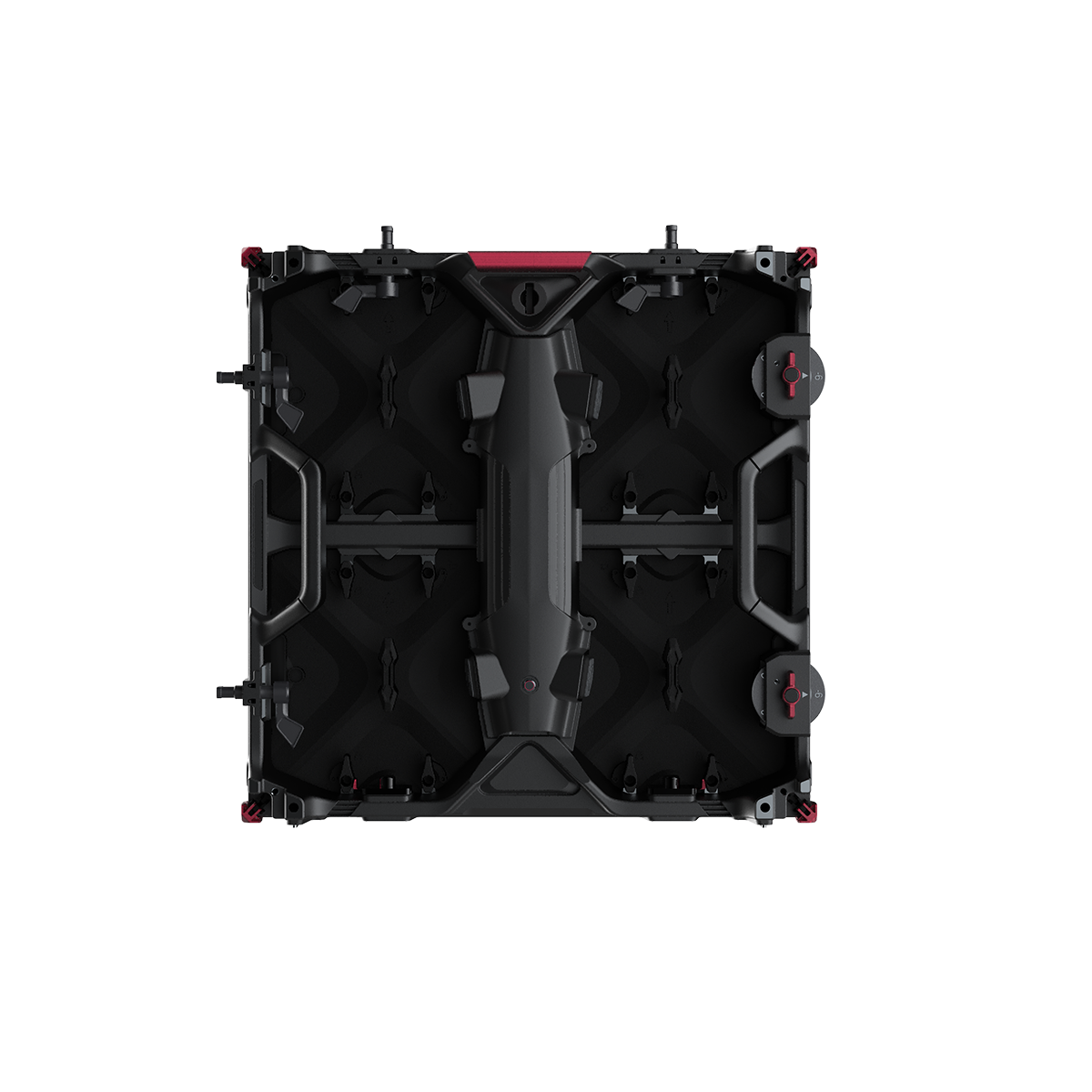

| Cabinet size | W500mmxH500mmxD82mm | W500mmxH500mmxD82mm | ||||||||||
| Cabinet resolution | 400*400dots | 320*320dots | 256*256dots | 200*200dots | 192*192dots | 168*168dots | 128*128dots | 256*256dots | 192*192dots | 168*168dots | 128*128dots | 104*104dots |
| Material | Die-casting aluminum | |||||||||||
| Cabinet Weight | 7.3kg±5% | |||||||||||
| Curve | (Convex) -6° ,-3° ,+6° ,+3°(Concave) /0° | |||||||||||
| Medule Maintenance | Front / Rear | |||||||||||
| Scan method | 1/50 | 1/40 | 1/32 | 1/25 | 1/32 | 1/21 | 1/16 | 1/32 | 1/32 | 1/21 | 1/16 | 1/16 |
| Brightness | ≥1000cd/㎡ | ≥4500cd/㎡ | ||||||||||
| Refresh rate | 3840-7680HZ | 3840-7680HZ | ||||||||||
| Input Voltage | AC220V/50Hz or AC110V/60Hz | AC220V/50Hz or AC110V/60Hz | ||||||||||
| Power Consumption[Max] | ≤600W/㎡ | ≤800W/㎡ | ||||||||||
| Power Consumption[Ave.] | 300W/㎡~380W/㎡ | 300W/㎡~380W/㎡ | ||||||||||
| lP rating | IP31 | IP65 | ||||||||||
